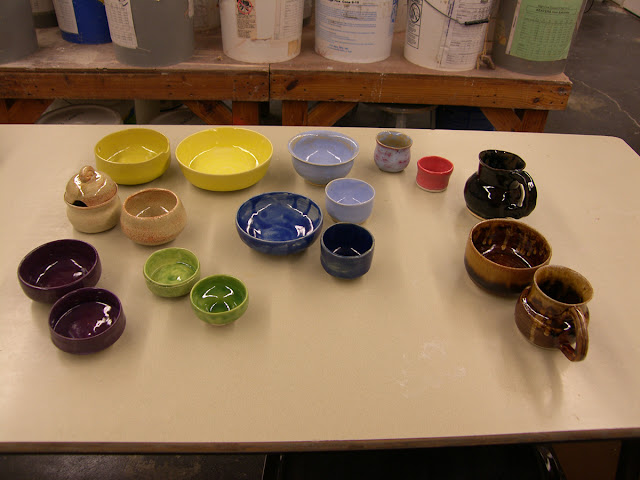

Still, the pieces came out with nice bright colors. Although there was an issue with thinness in places due to brush application, basically, it was a good firing and I learned a LOT from it.
ACTUAL FIRING RAMP note: kiln lid was cracked open for 14 hours of firing. it was 1900 degrees when Jen closed it. My bad. Hence the ramp was slowed to about 150 degrees per hour for 14 hours. Maybe more
100 degrees an hour up to 2232
drop at full speed to 1800
100 degrees an hour down to 1300
200 degrees an hour up to 2100
100 degrees an hour up to 2232
-- Hold 8 minutes
drop at full speed to 1800
100 degrees an hour down to 1300
EGGSHELL -- tried and true from Ceramic Arts Daily
CONE 6 | X1 | X2 | X3 | X5 |
Whiting | 9.5 | 19 | 28.5 | 47.5 |
Zinc Oxide | 5.5 | 11 | 16.5 | 27.5 |
Frit 3124 | 44.5 | 89 | 133.5 | 222.5 |
Custer Feldspar | 20 | 40 | 60 | 100 |
Bentonite | 7.5 | 15 | 22.5 | 37.5 |
Kaolin | 5 | 10 | 15 | 25 |
Silica | 8 | 16 | 24 | 40 |
TOTAL | 100 | 200 | 300 | 500 |
OXIDES | ||||
Tin Oxide | 9 | 18 | 27 | 45 |
RIO | 3 | 6 | 9 | 15 |
DJ'S GRAPE GLAZE
The Grape glaze with cobalt carbonate came out a perfect purple -- even better than the same recipe using cobalt oxide. Jen said that this was the first time she'd seen a glaze come out actually purple instead of dark blue. She said, "That's DJ's Purple" -- I'll check to make sure its not just a derivative of Jeannie's purple. If it isn't, then I guess its DJ's purple all right! I'm pretty sure the great color is due to the slow cooling at 100 F an hour from 1800 to 1300 degrees. It brings out more red.DJ's GRAPE GLAZE WITH COBALT CARBONATE
cone 6 | X1 | X2 | X3 | X5 |
Neph Sy | 18 | 36 | 54 | 90 |
Frit 3134 | 14 | 28 | 42 | 70 |
Whiting | 20 | 40 | 60 | 100 |
OM4 | 18 | 36 | 54 | 90 |
Silica | 30 | 60 | 90 | 150 |
total | 100 | 200 | 300 | 500 |
oxides | ||||
Chrome Ox | 0.2 | 0.4 | 0.6 | 1 |
Tin Ox | 7.5 | 15 | 22.5 | 37.5 |
Cobalt Carb | 1 | 2 | 3 | 5 |
RIO | 0.5 | 1 | 1.5 | 2.5 |
RASPBERRY BLUE BUST!
Alisa Clausen's Raspberry blue, whose image I loved so much and researched so hard to mix correctly turned out to be a bust. It's a glossy, watercolory sort of glaze that looks like diltued cobalt blue -- its cool if you want that sort of effect -- but I didn't want it. I'll try it again dipped, but I think its just going to be a translucent cobalt blue.
Here's the pic from Alisa Clausen's flickr
CONE 6 | X1 | X2 | X3 | X5 |
Neph Sy | 18 | 36 | 54 | 90 |
Frit 3134 | 14 | 28 | 42 | 70 |
Whiting | 20 | 40 | 60 | 100 |
OM4 | 18 | 36 | 54 | 90 |
Silica | 30 | 60 | 90 | 150 |
total | 100 | 200 | 300 | 500 |
oxides | ||||
Cobalt Carb | 1 | 2 | 3 | 5 |
R I O | 0.5 | 1 | 1.5 | 2.5 |
Well, they are both blue, that's for sure. I like seeing the glaze on an entire piece rather than a small rectangle of it. I'll make sure that I mixed it right, but after mixing it three different times, I'm pretty sure that I did. Anyway, I don't like how it turned out. I'll try it a couple more times, put on thicker and also try it on a couple of different clay bodies. But so far, its a "meh."
PRAESYODIMIUM YELLOW GLOSS
The praesyodimium yellow gloss came out muddy looking onf the buff clay that I've been making Laszlo's bowls out of. It looks great on the white clay body next to it. SO I'll make some bowls of Cinco Blanco and try it on that. I also am going to try it with a bit of tin in it as an opacifier, In the gloss white base, its quite translucent, so the buff claybody cannot work well with it if you want a pure yellow.
Neph Sy | 35 | |||
Silica | 21 | |||
EPK | 10 | |||
Whiting | 8 | |||
Gerstley Borate | 18 |
COLORANT: add 7 grams of praesydimonium yellow
This color is for one of the marine monster jugs that I have made. I like the effect of the k17 on top of the chartreuse. I'll have to get the K-17 recipe from my google docs excel files of the school's cone 6 glazes. It's nice the way it highlights the texture on the right teabowl.
Where it was put on thick enough, it came out great. On the mug below, its mediocre. I'll mix up more next time around and and put it on THICK! This glaze should probably be dipped, not brushed on. Where you see it come out so nicely on the above piece is where I dipped it in the small amount that I mixed up.
John Post Tomato Red #13
JEN'S JUICY FRUIT VARIATION FROM JOHN POST -
The Strontium Opal Blue is a beautiful glaze -- delicate and quite glossy -- but must be put on thick due to its translucence.
The center piece was strontium opal blue over candy apple red. Yeah. Yucky. Still, it might be a good effect over a different color.
The flash makes it look nicer than it really does. It is basically an inky black with vague hints of some color that MIGHT be there in the glossy blackness. This piece was dipped first in Ohata cone 6 and then in floating blue. I did quick dips because I did not want it to run under the handle like the last piece did. I even washed off the glaze under the handle more to help it not run, but it ran and puddled on the cookie under it anyway. Next time, I'm going to try BRUSHING on the Ohata and then dipping it in floating blue. Hope it works.
AMACO VELVET UNDERGLAZE CHARTREUSE
WITH K-17 CONE 6 GLAZE ON TOP
This color is for one of the marine monster jugs that I have made. I like the effect of the k17 on top of the chartreuse. I'll have to get the K-17 recipe from my google docs excel files of the school's cone 6 glazes. It's nice the way it highlights the texture on the right teabowl.
JOHN POST'S TOMATO RED 13 AND JUICY FRUIT VARIANT
Where it was put on thick enough, it came out great. On the mug below, its mediocre. I'll mix up more next time around and and put it on THICK! This glaze should probably be dipped, not brushed on. Where you see it come out so nicely on the above piece is where I dipped it in the small amount that I mixed up.
John Post Tomato Red #13
FRIT 3134 | 10.8 | |||
Neph Sy | 23.1 | |||
Bone Ash | 10 | |||
Magnesium Carb | 6.2 | |||
Whiting | 7.7 | |||
EPK | 21 | |||
FLINT | 21.2 | |||
TOTAL | 100 | |||
BENTONITE | 2 | |||
Red Iron Oxide | 12 | |||
Lithium Carb | 2 |
JEN'S JUICY FRUIT VARIATION FROM JOHN POST -
CONE 6 | X1 | X2 | X3 | X5 |
EPK | 30 | |||
Gerstley Borate | 27 | |||
Neph Sy | 147 | |||
Flint (Silica) | 36 | |||
Whiting | 33 | |||
Lithium Carb | 27 | |||
TOAL | 100 | |||
Soda Ash | 30 | |||
Titanium dioxide | 15 |
FIRING RAMP FROM JOHN POST’S EMAIL 10.10.2010
200 degrees an hour up to 2132
100 degrees an hour up to 2200
drop at full speed to 1800
150 degrees an hour down to 1300
200 degrees an hour up to 2132
100 degrees an hour up to 2200
drop at full speed to 1800
150 degrees an hour down to 1300
The Strontium Opal Blue is a beautiful glaze -- delicate and quite glossy -- but must be put on thick due to its translucence.
37.8 Custer Feldspar | 75.6 Custer Feldspar |
24.9 silica | 49.8 silica |
22.8 borate,Gerstley | 45.6 Gerstley Borate |
11.2 calcium carbonate | 22.4 calcium carbonate |
3.1 strontium carbonate | 6.2 strontium carbonate |
3 rutile, 0.4 cobalt carbonate | 6 rutile, 0.8 cobalt carbonate |
The center piece was strontium opal blue over candy apple red. Yeah. Yucky. Still, it might be a good effect over a different color.
FLOATING BLUE OVER CONE 6 OHATA
DO NOT MAKE THE MISTAKE OF SLOW COOLING THIS GORGEOUS GLAZE!
Normally this is a killer combinationbut in a slow cool, with a thick coat of Ohata and floating blue on the piece -- it just turns blackish brownish blue
